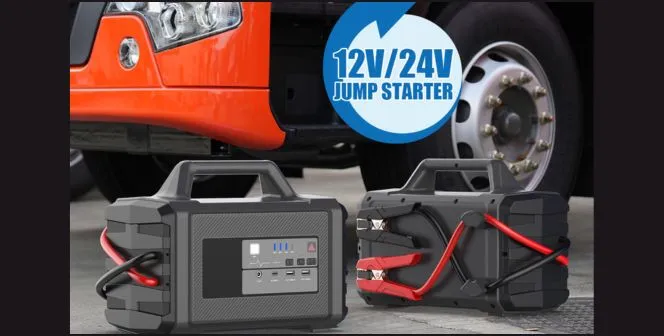

The heavy duty jump starter for semi truck is mainly designed for 12v and 24v system, covering 1500-2000+ peak current range for covering 1500-3250+ peak current range for cold weather emergency starting in various conditions.And a 24V jump box (also called a 24V jump starter) is a portable battery pack designed to jump-start semi trucks with dead batteries, particularly larger vehicles that use 24-volt electrical systems.

How many amps are needed to jump-start a semi truck?

Semi trucks require 2,000 to 3,250 peak amps for reliable starting, with peak amp rating being the decisive factor for successful diesel engine cranking.Higher peak amps indicate greater capability to deliver the instantaneous current required to crank diesel semi truck engines.

For example, the JS-396 CARKU jump starter delivers up to 8,000 peak amps with 24V compatibility, providing sufficient power for most heavy-duty semi trucks, both gas and diesel. However, trucks with 12V systems have different power requirements.Let’s look into the typical peak amps range in different applications.

Peak Amps: The Decisive Performance Factor

2000-2500+ Peak Amps Range:

System Compatibility:12V/24V systems, medium diesel engines

Typical Applications:Medium-duty trucks, some semi tractors

Temperature Performance:Reliable starting from ambient to -40℃
Best For:Regional hauling, delivery fleets

2500-3250+ Peak Amps Range:

System Compatibility:24V systems, large diesel engines

Typical Applications:Heavy-duty semi trucks, large commercial vehicles

Temperature Performance:All-weather including extreme cold conditions

Best For:Semi trucks,heavy duty trucks

The 24V battery system used in most semi trucks requires jump starters with robust peak amp delivery, making the 2500+ amp range essential for reliable cold-weather starting performance.

What amp jump starter for diesel truck?

The professional-grade unit provides 7,000 peak amps of instantaneous power, specifically engineered for heavy-duty diesel engine starting applications.For the most cost-effective choice, like the JS-393B jump starter features advanced lithium iron phosphate (LiFePO4) battery technology, delivering stable and consistent high peak current output.

Will a 24v 2500 amp jump starter start a semi truck?

A 2500 amp jump starter can start a semi truck, as semi trucks typically require 1,000 to 2,000 amps or higher, particularly for large-displacement diesel engines. Therefore, 2500 amps falls within the effective starting range.

Cold Cranking Amps (CCA) Consideration: For 24v battery jump starter, CCA performance becomes crucial under low-temperature conditions, as this determines the actual deliverable power when batteries are cold.

Specific Conditional Factors:

Low Temperature Performance:Battery chemistry and thermal management directly impact starting capability in cold weather.

Peak Amp Output: The instantaneous current delivery capacity during engine cranking.

Voltage System Compatibility: Matching the jump starter's output voltage (12V/24V) with the truck's electrical system.

Is a 24v 2500 amp jump starter good?

Below factors are the metrics of 24v 2500 amp jump box good or bad.
Battery type：LiFePO4 offers superior safety as it cannot be easily overcharged and tolerates short circuits without exploding.This is one of the standard of good jump box.
Vehicle Engine Displacement:The NOCO 2500A jump starter is rated for up to 8.5L gasoline and 6.5L diesel engines. Some 2500A products claim to support up to 10.0L gasoline and 8.0L diesel engines.
Semi Truck Compatibility Issue: Most semi trucks use 9-15L diesel engines, which exceeds the rated capacity of many 2500A jump starters. For this application, the CARKU JS-393B is specifically engineered for trucks with up to 13.0L diesel engines.

How much power do you need to jump-start a truck?

Here's the appropriate jump starter amper for different truck types.Choosing the right battery pack depends on your truck's size and engine displacement.

Light-Duty Trucks (Pickup Trucks)

Engine Size: 2.0L – 6.0L

Recommended Jump Starter: 1000A – 1500A

Pickup trucks such as the Ford F-150, Chevrolet Silverado, and Ram 1500 generally need 1000A to 1500A for reliable starts.

Medium-Duty Trucks (Long-Haul Delivery Vehicles)

Engine Size: 6.0L – 9.0L

Recommended Jump Starter: 1500A – 2500A

These trucks fall between pickups and semi trucks. With larger engines, they typically require 1500A to 2500A to meet higher compression and power demands.

Heavy-Duty Semi Trucks

Engine Size: 9.0L – 15.0L

Recommended Jump Starter: 2500A – 4000A

Semi trucks use large diesel engines that demand 2500A to 4000A for dependable cold-weather starts and high cranking requirements.

Extra Heavy-Duty Industrial Trucks

Engine Size: 15.0L and above

Recommended Jump Starter: 4000A+

Industrial vehicles such as mining trucks and construction machinery often exceed 15.0L displacement. They require 4000A or more to handle extreme starting conditions.
