4-In-1 Jump Starter With Air Compressor Vs. 6-In-1 Jump Starter: Which Is Better?

August 01，2025 Facebook Linkedin YouTube

Compare 4-in-1 jump starter with air compressor vs 6-in-1 jump starter. Learn about 1500A peak current, car battery specs, jump start process, and which offers better value for money,performance and usability.

When your car battery dies unexpectedly, having the right jump starter can make the difference between a minor inconvenience and a major headache.Today's market offers versatile multi-function jump starters, with 4-in-1 and 6-in-1 booster units leading the pack. A 4-in-1 jump starter typically combines jump starting capabilities with an air compressor, LED flashlight, and USB charging ports, while a 6-in-1 jump starter expands these features to include additional functions like blower and emergency tools. Their amp ratings, and real-world performance will help you choose the most practical and cost-effective solution for your emergency roadside needs.

How Many amps Are In a 12 Volt Car Battery?

A typical 12-volt car battery contains 40-100 amp-hours of stored energy. For traditional lead-acid car batteries, the crucial specification is Cold Cranking Amps (CCA) - usually ranging from 400-800 amps related with car vehicle type and size. However, when we discuss modern jump starters rated at 1500 amps, this figure represents the peak current capacity, which is specifically designed for lithium-ion battery that powers these portable devices.

A standard Toyota Camry has a 12V lead-acid battery with 550 CCA rating for sustained power delivery. When this battery is completely dead in winter, the engine needs about 300-400 amps to crank and start. Here's why a 1500A peak current lithium-ion jump starter works perfectly:

1.Superior Peak Power: The 4-in-1 jump starter with lithium-ion batteries deliver 1500A peak current instantly, far exceeding the lead-acid battery's CCA limitation. Because the peak current stands for max level of electrical current that a unit can handle for a short period of time.

2.Instant High-Current Burst:Lithium-ion batteries are lighter, more environmentally friendly and and have a longer lifespan than lead acid batteries. While lead-acid batteries have a greater ability to start a car engine, lithium-ion batteries are more than two times better at starting and charging.

3.Temperature Independence: Lithium-ion maintains peak performance in cold weather, while lead-acid CCA drops significantly.

4.Quick Recovery: The 1500A peak current handles multiple cranking cycles without performance degradation.

4-In-1 Jump starter vesus 6-In-1 Jump Starter

The Noco GB50 is a portable jumper that is well worth it, if you're buying it for what it was made for.However, there are instances where you may have a slightly different need, and the GB50 won't satisfy your needs. If you're looking to power larger displacement vehicles or diesel engines up to 3.8 liters, then you're better off buying and using a more powerful alternative like the JS-558 6 all in 1 jump starter.

With an impressive 3250 peak amps, the JS-558 6 all in 1 jump starter can easily handle all gasoline vehicles.
If you are looking for a quality product that combines a portable starter with an air compressor and want to use it for high-pressure pneumatic tires, then the JS-507 4-in-1 Starter is the ideal choice for you. I would also like to mention that traditional lead-acid batteries are becoming obsolete in the market. They are 2-3 times heavier than lithium-ion batteries and far less efficient.

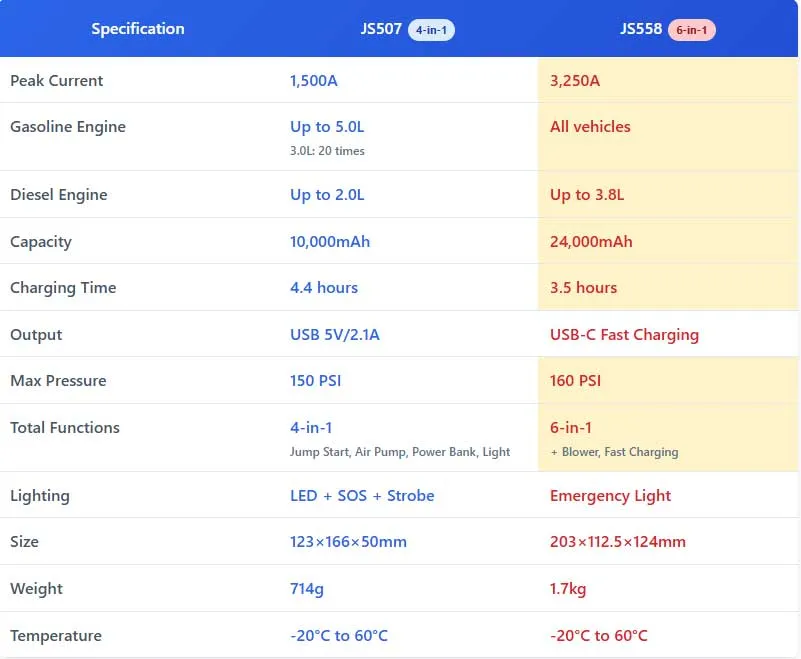

Table info: JS507 VS JS558

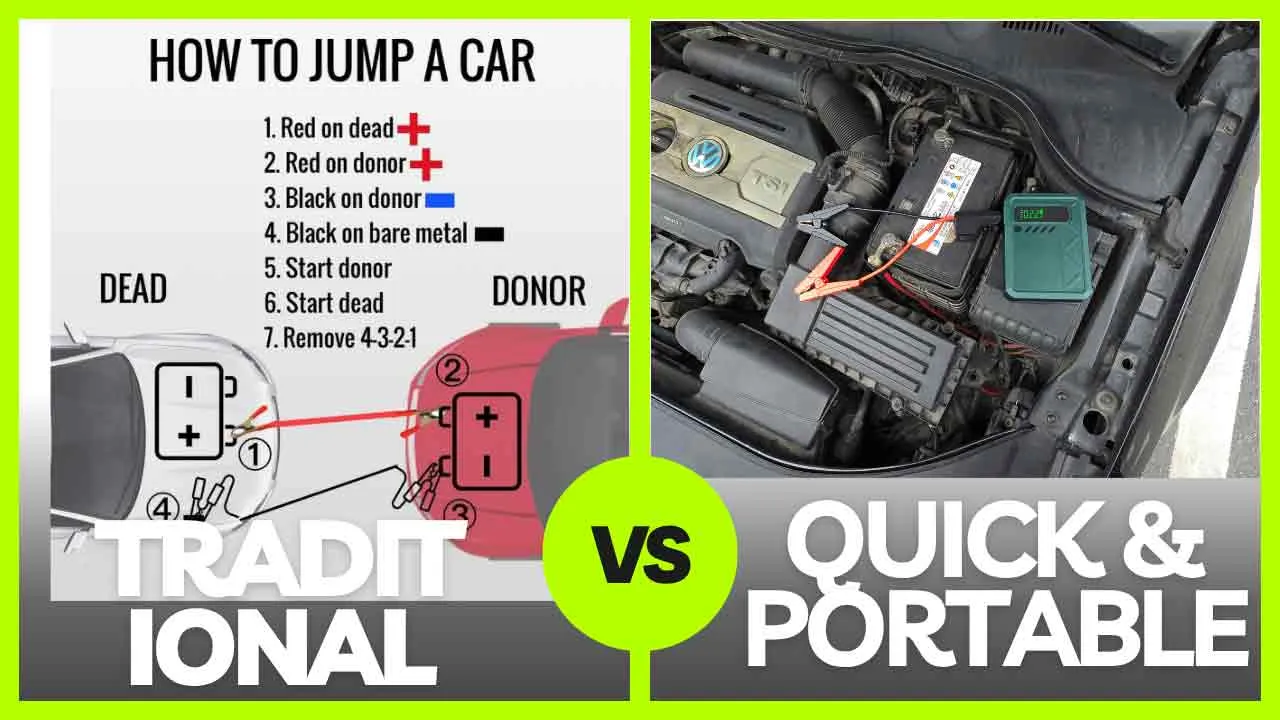

What Do You Connect First,Ground Or Positive?

After knowing the 4-in-1 jump starter and the air inflator jump starter speciality, how does it connect and air inflator assemble on the one jump starter.Battery terminal shoule be connected on the positive terminal first.Conversely, if you connect the terminals in reverse order (negative first), you significantly increase safety risks and potential damage. When the negative clamp is connected first and you accidentally brush the positive clamp against any metal surface of the vehicle, you create a direct short circuit through the car's chassis.The proper smart battery jump starter connection step by step is the following:

▶Connect positive clamp to positive battery terminal:Direct battery-to-battery connection means that you connect positive to positive and negative to negative on the dead battery.

▶Connect negative clamp to negative battery terminal

▶No additional grounding required:Unlike traditional jumper cables that often use the car chassis as ground, smart jump starters create a complete circuit through the battery terminals only.

The tire inflation pump with pressure gauge perfectly demonstrates the advantages of JS-507, which is mainly used in the market for small utility vehicles. Occasional users and have limited budgets, so a jump box with an air compressor can start the vehicle quickly. In lithium battery starter kits, Starting amps are the only recognized test indicator. In lead-acid battery packs, Cranking Amps is the test metric.Peak current is an extremely important term in the field of lithium batteries.

H1:How To Use a Jump Starter Air Compressor?

Starting a vehicle with a portable jump starter provides a faster, easier and more independent solution than traditional jumper cables. Without having to rely on another working vehicle and extra personnel, the 4-in-1 jump starter gets you back on the road on your own in a few simple steps.

Just connect the red clamp to the positive terminal of the battery first, and the black clamp to the negative terminal. Afterward, plug the clamp connector into the blue port on the starter. After ensuring that all connections are secure, start the vehicle and remove the clamps within 30 seconds of turning the engine over.

In contrast, the use of jumper cables requires coordination between the two vehicles, careful alignment of the front ends of the vehicles, and the assistance of another driver. The process begins by connecting the two positive terminals, then the negative terminal of the live battery, and finally grounding the last negative clamp to the frame of the failed vehicle. After that, start the normally working vehicle first and then the faulty vehicle. Some methods recommend keeping the vehicle in Park or Neutral, disconnecting the cables in reverse order, and driving onto the highway to charge the battery afterwards. Other methods focus more on safety measures, such as checking for corrosion or sparks.

Overall, while both methods can revive a dead battery, a jump box with air compressor is the faster and more convenient option - for solo drivers, emergencies or scenarios where space is tight to dispatch a second vehicle.

How Do You Charge The Instant Power Portable Jump Starter?

A portable jump starter starter is the ideal on-board accessory for when your car's battery suddenly dies, especially when time is of the essence or in an emergency situation to help you get back on the road quickly. Compact and portable, it can be easily stored under the seat, in the glove compartment or in the trunk. As a multifunctional jump box, the starter can be used in a variety of scenarios. For example, you can charge your electronic devices on the go via its USB charging port or utilize its powerful LED flashlight function when you need extra light while driving.

The JS507 can charge a 3.0L gasoline vehicle up to 20 times, and once it has run out of juice, it can be quickly recharged up to 100% using the 5V/2A input usb-c port.The battery charging on the Lifepo4 is fast and lightweight, and carku's jump starter series all meet the qualification of UL/CE/FCC/PSE/ROHS, safe and reliable.

Frequently Asked Questions

1.Do you need to charge a portable jump starter?

The JS-507 appears to be designed to handle approximately 20 jump starts for 3.0L gasoline engines before needing a recharge. The LiFePO4 battery technology mentioned is excellent for jump starters due to its high efficiency, safety, and longevity.when not using the JS-507 jump starter, you should charge it every 3-6 months.

2.Do you hook up positive or negative first when charging a car battery?

If choose a jump starter, the red clamp of smart jump cable to the positive terminal of the dead battery.

3.Will a jump starter start a dea battery?

A jump starter is designed to restore a dead battery at any time. No assistance is required. And can charge a wide range of devices including electronic devices.
